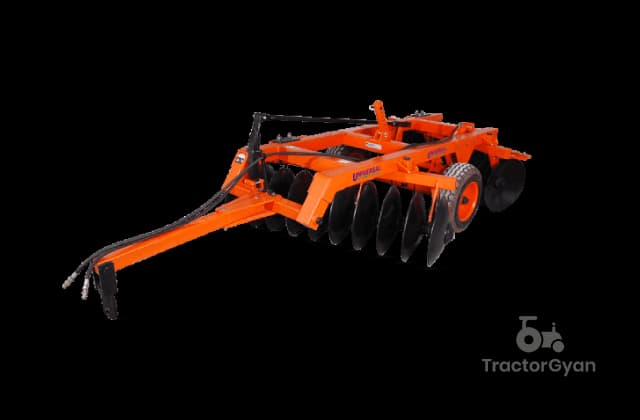

Universal Heavy Duty Hydraulic Disc Harrow Technical Specifications
Universal Heavy Duty Hydraulic Disc Harrow Features
Brand
Model
Heavy Duty Hydraulic Disc Harrow
Category
No. of Discs
18 to 32
Type
Suitable HP
65-190 HP
Gang Bolt
Solild Square 40 (Rod)
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc(optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
6 to 8
Width of Cut
2100-3500 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Price
Data Last Updated On: 27 Jul 2026
About Universal Heavy Duty Hydraulic Disc Harrow
Universal Heavy Duty Hydraulic Disc Harrow Models
| Specification | BEHDHH- 18 | BEHDHH- 20 | BEHDHH- 22 | BEHDHH- 24 | BEHDHH- 28 | BEHDHH- 32 |
|---|---|---|---|---|---|---|
| Weight | 1530 kg | 1620 kg | 1750 kg | 1835 kg | 2005 kg | 2160 kg |
| gang bolt | Solid Square 40 (Rod) | Solid Square 40 (Rod) | Solid Square 40 (Rod) | Solid Square 40 (Rod) | Solid Square 40 (Rod) | Solid Square 40 (Rod) |
| No. of Disc | 18 | 20 | 22 | 24 | 28 | 32 |
| Type of Disc | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) |
| Disc Diameter | 610-660 mm | 610-660 mm | 610-660 mm | 610-660 mm | 610-660 mm | 610-660 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 6 | 8 | 8 | 8 | 8 | 8 |
| Width of Cut | 2100 mm | 2300 mm | 2500 mm | 2700 mm | 3100 mm | 3500 mm |
| Tyre Size | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) |
| Tractor HP | 65-75 HP | 80-90 HP | 90-110 HP | 115-135 HP | 140-165 HP | 170-190 HP |
Heavy Duty Hydraulic Disc Harrow - BEHDHH- 18
Weight
1530 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
18
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
6
Width of Cut
2100 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
65-75 HP
Heavy Duty Hydraulic Disc Harrow - BEHDHH- 20
Weight
1620 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
20
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2300 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
80-90 HP
Heavy Duty Hydraulic Disc Harrow - BEHDHH- 22
Weight
1750 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
22
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2500 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
90-110 HP
Heavy Duty Hydraulic Disc Harrow - BEHDHH- 24
Weight
1835 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
24
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2700 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
115-135 HP
Heavy Duty Hydraulic Disc Harrow - BEHDHH- 28
Weight
2005 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
28
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
3100 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
140-165 HP
Heavy Duty Hydraulic Disc Harrow - BEHDHH- 32
Weight
2160 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
32
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
3500 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
170-190 HP
