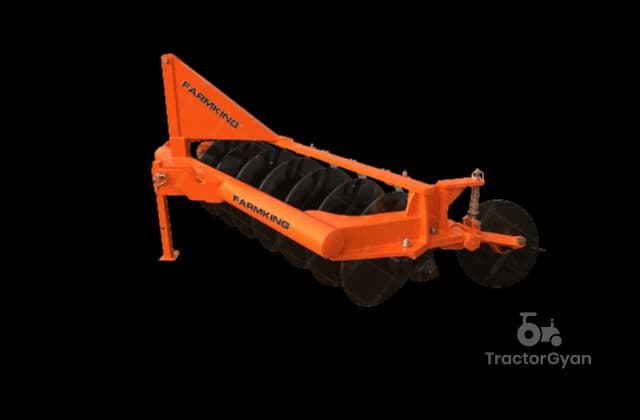

Farmking Poly Disc Harrow Technical Specifications
Farmking Poly Disc Harrow Features
Brand
Model
Poly Disc Harrow
Category
No. of Discs
6-8
Tractor Power (HP)
60-110 HP
Type
Weight
505-610 kg
Suitable HP
50-75
Types of Bear
Heavy Duty - Pedestal Type
Gang Bolt
90mm Tube with solid ends
Type of Disc
Notched Disc / Plain Disc
Disc Diameter
610-660 mm
Tillage Width
1210-1710 mm
Distance Between Discs
250 mm
Bearing Hub
2 nos.(Heavy Duty-Pedestal Type)
Price
Data Last Updated On: 27 Jul 2026
About Farmking Poly Disc Harrow
Farmking Poly Disc Harrow Models
| Specification | FKPDH-6D | FKPDH-7D | FKPDH-8D |
|---|---|---|---|
| Working Depth | 200 mm | 200 mm | 200 mm |
| Weight | 505 kg | 560 kg | 610 kg |
| types of bear | Heavy Duty - Pedestal Type) | Heavy Duty - Pedestal Type) | Heavy Duty - Pedestal Type) |
| No. of Disc | 6 | 7 | 8 |
| Type of Disc | Notched Disc / Plain Disc (Optional) | Notched Disc / Plain Disc (Optional) | Notched Disc / Plain Disc (Optional) |
| Disc Diameter | 610 mm | 610 mm | 610 mm |
| Tillage Width | 1210 mm | 1460 mm | 1710 mm |
| Distance Between Discs | 250 mm | 250 mm | 250 mm |
| Bearing Hub | 2 Nos. (Heavy Duty - Pedestal Type) | 2 Nos. (Heavy Duty - Pedestal Type) | 2 Nos. (Heavy Duty - Pedestal Type) |
| Tractor HP | 60 - 75 HP | 75 - 90 HP | 90 - 110 HP |
Poly Disc Harrow - FKPDH-6D
Working Depth
200 mm
Weight
505 kg
types of bear
Heavy Duty - Pedestal Type)
No. of Disc
6
Type of Disc
Notched Disc / Plain Disc (Optional)
Disc Diameter
610 mm
Tillage Width
1210 mm
Distance Between Discs
250 mm
Bearing Hub
2 Nos. (Heavy Duty - Pedestal Type)
Tractor HP
60 - 75 HP
Poly Disc Harrow - FKPDH-7D
Working Depth
200 mm
Weight
560 kg
types of bear
Heavy Duty - Pedestal Type)
No. of Disc
7
Type of Disc
Notched Disc / Plain Disc (Optional)
Disc Diameter
610 mm
Tillage Width
1460 mm
Distance Between Discs
250 mm
Bearing Hub
2 Nos. (Heavy Duty - Pedestal Type)
Tractor HP
75 - 90 HP
Poly Disc Harrow - FKPDH-8D
Working Depth
200 mm
Weight
610 kg
types of bear
Heavy Duty - Pedestal Type)
No. of Disc
8
Type of Disc
Notched Disc / Plain Disc (Optional)
Disc Diameter
610 mm
Tillage Width
1710 mm
Distance Between Discs
250 mm
Bearing Hub
2 Nos. (Heavy Duty - Pedestal Type)
Tractor HP
90 - 110 HP
