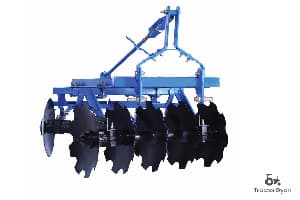

Solis Disc Harrow Hydraulic trailed type with tyre Technical Specifications
Solis Disc Harrow Hydraulic trailed type with tyre Features
Brand
Model
Disc Harrow Hydraulic trailed type with tyre
Category
Working Width
2300-3500 mm
No. of Discs
20 to 37
Type
No. of Blades
20-37
Weight
1650-2250 Kg
Suitable HP
70-150 HP
Gang Bolt
40 mm
Type of Disc
Notched Disc in Front Gang & Plain Disc in Rear Gang
Disc Diameter
660 mm
Bearing Hub
8
Tyre Size
7.50x16
Price
Data Last Updated On: 27 Jul 2026
About Solis Disc Harrow Hydraulic trailed type with tyre
Solis Disc Harrow Hydraulic trailed type with tyre Models
| Specification | SL-THD-10 (10x10) | SL-THD-12 (12x12) | SL-THD-14 (14x14) | SL-THD-10-H (10x10) | SL-THD-12-H (12x12) | SL-THD-14-H (14x14) | SL-THD-16-H (16x16) |
|---|---|---|---|---|---|---|---|
| Weight | 1780 kg | 1970 kg | 2190 kg | 1270 kg | 1400 kg | 1210 kg | 1700 kg |
| gang bolt | Square Solid bar 40mm | Square Solid bar 40mm | Square Solid bar 40mm | Square Solid bar 40mm | Square Solid bar 40mm | Square Solid bar 40mm | Square Solid bar 40mm |
| No. of Disc | 20 | 24 | 28 | 20 | 24 | 28 | 37 |
| Type of Disc | Notched Infront & Pain in Rear | Notched Infront & Pain in Rear | Notched Infront & Pain in Rear | Notched Infront & Pain in Rear | Notched Infront & Pain in Rear | Notched Infront & Pain in Rear | Notched Infront & Pain in Rear |
| Disc Diameter | 660mm X 6mm | 660mm X 6mm | 660mm X 6mm | 610mm X 5mm | 610mm X 5mm | 610mm X 5mm | 610mm X 5mm |
| Bearing Hub | 8 Nos. S.G. IRON (500/7) | 8 Nos. S.G. IRON (500/7) | 8 Nos. S.G. IRON (500/7) | Taper Roler Bearing | Taper Roler Bearing | Taper Roler Bearing | Taper Roler Bearing |
| Tractor HP | 75+ | 90+ | 105+ | 60+ | 80+ | 95+ | 110+ |
Disc Harrow Hydraulic trailed type with tyre - SL-THD-10 (10x10)
Weight
1780 kg
gang bolt
Square Solid bar 40mm
No. of Disc
20
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
660mm X 6mm
Bearing Hub
8 Nos. S.G. IRON (500/7)
Tractor HP
75+
Disc Harrow Hydraulic trailed type with tyre - SL-THD-12 (12x12)
Weight
1970 kg
gang bolt
Square Solid bar 40mm
No. of Disc
24
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
660mm X 6mm
Bearing Hub
8 Nos. S.G. IRON (500/7)
Tractor HP
90+
Disc Harrow Hydraulic trailed type with tyre - SL-THD-14 (14x14)
Weight
2190 kg
gang bolt
Square Solid bar 40mm
No. of Disc
28
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
660mm X 6mm
Bearing Hub
8 Nos. S.G. IRON (500/7)
Tractor HP
105+
Disc Harrow Hydraulic trailed type with tyre - SL-THD-10-H (10x10)
Weight
1270 kg
gang bolt
Square Solid bar 40mm
No. of Disc
20
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
610mm X 5mm
Bearing Hub
Taper Roler Bearing
Tractor HP
60+
Disc Harrow Hydraulic trailed type with tyre - SL-THD-12-H (12x12)
Weight
1400 kg
gang bolt
Square Solid bar 40mm
No. of Disc
24
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
610mm X 5mm
Bearing Hub
Taper Roler Bearing
Tractor HP
80+
Disc Harrow Hydraulic trailed type with tyre - SL-THD-14-H (14x14)
Weight
1210 kg
gang bolt
Square Solid bar 40mm
No. of Disc
28
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
610mm X 5mm
Bearing Hub
Taper Roler Bearing
Tractor HP
95+
Disc Harrow Hydraulic trailed type with tyre - SL-THD-16-H (16x16)
Weight
1700 kg
gang bolt
Square Solid bar 40mm
No. of Disc
37
Type of Disc
Notched Infront & Pain in Rear
Disc Diameter
610mm X 5mm
Bearing Hub
Taper Roler Bearing
Tractor HP
110+
