New holland 3630 TX Special edition

The New Holland 3630 TX Special Edition is a 50 HP Cat. tractor built for farmers who need one machine for heavy fieldwork, haulage, and PTO jobs. It runs on a 4-cylinder FPT S8000 engine at 2100 RPM and delivers 46 PTO HP. The 60-litre fuel tank and power steering support easier handling and working power in long hours.

Farmers get 8F+2R, 12F+3R Creeper, and 12F+3R UG gearbox options; double clutch with independent PTO lever; Sensomatic24 hydraulics; Lift-O-Matic with height limiter; and 1700/2000 kg lift capacity make the New Holland 3630 TX special Edition tractor a popular choice among farmers.

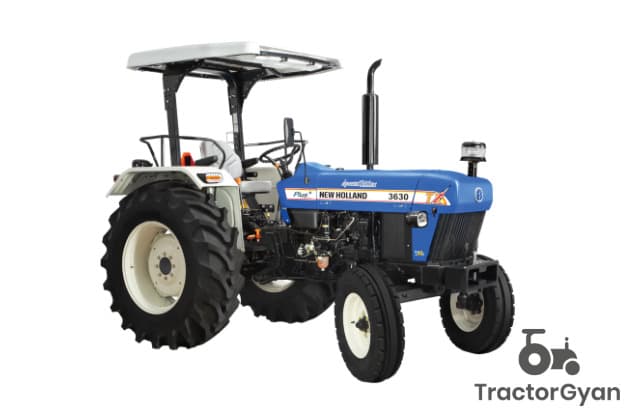

New holland 3630 TX Special edition image (1)

4.9

(13 reviews)

HP50 Hp cat.

Cylinders4

Wheel Base2040 mm

Lifting Capacity1700kg / 2000 kg with Assist Ram*

Warranty6 Years T-Warranty

New holland 3630 TX Special edition Specifications

New holland 3630 TX Special edition - Engine

New holland 3630 TX Special edition - Transmission

New holland 3630 TX Special edition - Power Take-off

New holland 3630 TX Special edition - Brakes

New holland 3630 TX Special edition - Steering

New holland 3630 TX Special edition - Fuel Tank

New holland 3630 TX Special edition - Dimension & Weight

New holland 3630 TX Special edition - Hydraulics

New holland 3630 TX Special edition - Wheels & Tyres

New holland 3630 TX Special edition - Additional Features & Comfort

New holland 3630 TX Special edition Specifications
Specification	Value
Engine Name	FPT S8000 series, 4 Stroke Turbo Charted Engine
HP	50 Hp cat.
Power (kW)	36.94 kW
Cylinders	4
Engine Rated RPM	2100
Transmission Name	Constant Mesh/Partial Synchro Mesh
Number of Gears	8 F + 2 R / 12 F + 3 R Creeper* / 12 F + 3 R UG
Maximum Forward Speed	1.83 - 30.84 kmph
Maximum Reverse Speed	2.59 - 13.82 kmph
Clutch Type	Double Clutch with Independent Clutch Lever
PTO HP	46
PTO Type	Independent, 6 Splines 540 Std, GS PTO & Rev PTO*
PTO Speed	540@1967
Brakes	Real Oil Immersed Multi Disc Brakes
Steering	Power Steering
Fuel Tank Capacity	60 L
Length	3700 mm
Height	2280 mm
Width	1960 mm
Wheel Base	2040 mm
Tractor Weight	2195 kg
Ground Clearance	505 mm
Lifting Capacity	1700kg / 2000 kg with Assist Ram*
Point Linkage	3 Point linkage Category - II
Hydraulic Control	Sensomatic24 Hydraulic
Tyre Size	7.5X16 (Front) and 16.9X28 (Rear)
Wheel Drive	2WD
Warranty	6 Years T-Warranty
Battery	88 Ah
Alternator	45 Amp

New holland 3630 TX Special edition EMI Calculator

Loan Amount

₹

|0|10L|20L|30L

Loan Tenure (Years)

|0|10|20|30

Rate of Interest

|0%|10%|20%|30%

Total EMI

₹0/-
Month

Principal – ₹5,00,000/-

Interest – ₹0/-

Monthly EMI:₹0

6 Monthly EMI:₹0

Total Interest:₹0

Total Amount:₹0

₹5,00,000Loan Amount

5 YrLoan Tenure

10%Rate of Interest

New holland 3630 TX Special edition Overview

The New Holland 3630 TX Special Edition is a premium tractor in the 50 HP category, built with advanced technology and heavy-duty engineering for modern Indian farming needs. Equipped with a reliable FPT 8000 Series turbocharged engine, a robust lifting capacity of up to 2000 kg, and superior features like Sensomatic24 hydraulics, Independent PTO, and DRL Signature Headlamps, this tractor ensures efficiency, durability, and operator comfort across all farm operations.

Whether it's tillage, haulage, harvesting, or commercial applications, the New Holland 3630 TX Special Edition delivers consistent performance with lower maintenance and better fuel economy.
