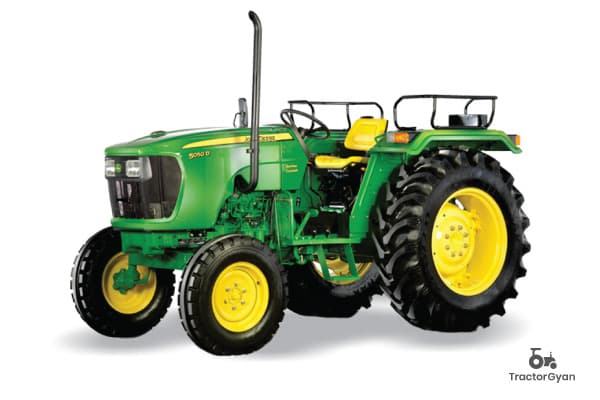

John deere 5050 D

The John Deere 5050 D comes with a collarshift transmission and side-shift configuration. This transmission offers multiple speed choices for fieldwork and transportation, helping operators select suitable speeds according to the implement, workload, terrain, and operating requirements.

The John Deere 5050 D has an 8 Forward + 4 Reverse gearbox. These gear options provide flexibility for different agricultural and transportation applications. The operator can select suitable gears according to field conditions, implement requirements, workload, road conditions, and the speed needed for specific farming operations.

The John Deere 5050 D has a forward speed range of approximately 2.97 to 32.44 kmph. This range provides flexibility for slow field operations as well as transportation work. Actual operating speed should be selected according to the implement, load, terrain, road conditions, and recommended safety requirements.

The John Deere 5050 D offers a reverse speed range of approximately 3.89 to 14.09 kmph. This range provides useful flexibility for manoeuvring, implement positioning, trolley handling, and other applications requiring reverse movement. Operators should select a safe reverse speed according to terrain, load, visibility, and working conditions.

The John Deere 5050 D is available with Single or Dual clutch configurations. The clutch system manages power transmission between the engine, transmission, and PTO system. The available configuration can depend on the selected tractor version. Buyers should confirm the exact clutch arrangement with the authorised source before purchase.

The John Deere 5050 D features an independent PTO with a 6-spline shaft. This PTO system allows the tractor to operate compatible PTO-driven agricultural implements. It can be used for equipment such as rotavators, threshers, sprayers, balers, and other machinery requiring mechanical power from the tractor.

The John Deere 5050 D is equipped with oil-immersed disc brakes. This braking system is designed to provide effective stopping and control during agricultural and transportation operations. Oil immersion can support brake durability and performance. Regular inspection and maintenance of the braking system are important for safe tractor operation.

The John Deere 5050 D comes with power steering. Power steering reduces the physical effort required to turn the tractor and helps provide smoother handling during fieldwork and transportation. It is particularly useful when manoeuvring with implements, making turns, or operating the tractor for extended periods.

The John Deere 5050 D has a 60-litre fuel tank. This capacity provides a useful fuel reserve for extended agricultural and transportation operations. Actual fuel consumption and operating duration depend on workload, implement size, soil conditions, engine speed, maintenance, tyre pressure, and the operator’s driving practices.

The John Deere 5050 D has a maximum lifting capacity of 1600 kg at the lower link ends. This capacity enables it to handle several compatible mounted agricultural implements. It can support applications involving cultivators, ploughs, seed drills, rotavators, and other equipment within the tractor’s recommended operating and lifting limits.

The John Deere 5050 D uses Automatic Depth and Draft Control, commonly called ADDC. This hydraulic control system helps maintain appropriate implement depth and draft during field operations. It is useful for soil preparation and cultivation applications where consistent implement positioning and working depth can support better field performance.

The John Deere 5050 D has a wheelbase of 1970 mm. Wheelbase influences tractor stability, handling, and balance during fieldwork and transportation. Its dimensions work with the tractor’s tyre configuration and overall design to provide suitable performance across various agricultural operating conditions.
