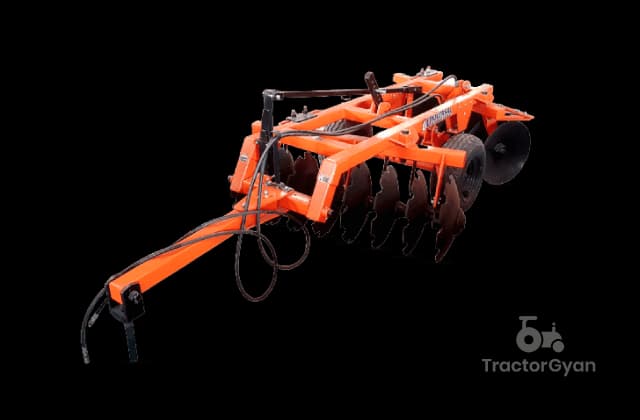

Universal Medium Duty Hydraulic Disc Harrow Technical Specifications
Universal Medium Duty Hydraulic Disc Harrow Features
Brand
Model
Medium Duty Hydraulic Disc Harrow
Category
No. of Discs
14 to 18
Type
Weight
1150-1470 Kg
Suitable HP
50-90 HP
Gang Bolt
Solild Square 40 (Rod)
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc(optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
4 to 6
Width of Cut
1700-2100 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Price
Data Last Updated On: 27 Jul 2026
About Universal Medium Duty Hydraulic Disc Harrow
Universal Medium Duty Hydraulic Disc Harrow Models
| Specification | BEMDHH-14 | BEMDHH-16 | BEMDHH-18 |
|---|---|---|---|
| Weight | 1150 kg | 1265 kg | 1470 kg |
| gang bolt | Solid Square 40 (Rod) | Solid Square 40 (Rod) | Solid Square 40 (Rod) |
| No. of Disc | 14 | 16 | 18 |
| Type of Disc | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) |
| Disc Diameter | 610-660 mm | 610-660 mm | 610-660 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 4 | 6 | 6 |
| Width of Cut | 1700 mm | 1900 mm | 2100 mm |
| Tyre Size | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) | 10.0/75-15.3 (8 to 16 PR) |
| Tractor HP | 45-50 HP | 55-60 HP | 65-70 HP |
Medium Duty Hydraulic Disc Harrow - BEMDHH-14
Weight
1150 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
14
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
4
Width of Cut
1700 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
45-50 HP
Medium Duty Hydraulic Disc Harrow - BEMDHH-16
Weight
1265 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
16
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
6
Width of Cut
1900 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
55-60 HP
Medium Duty Hydraulic Disc Harrow - BEMDHH-18
Weight
1470 kg
gang bolt
Solid Square 40 (Rod)
No. of Disc
18
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
610-660 mm
Distance Between Discs
228 mm
Bearing Hub
6
Width of Cut
2100 mm
Tyre Size
10.0/75-15.3 (8 to 16 PR)
Tractor HP
65-70 HP
