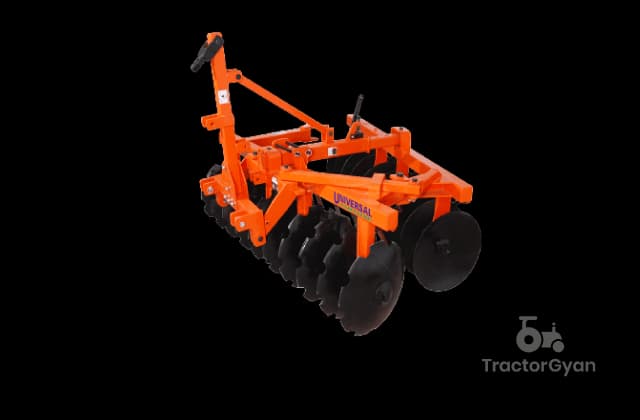

Universal Compact Model Disc Harrow Technical Specifications
Universal Compact Model Disc Harrow Features
Brand
Model
Compact Model Disc Harrow
Category
No. of Discs
16 to 24
Type
Weight
681-998 Kg
Suitable HP
50-135 HP
Gang Bolt
Solild Square 32 (Rod)
Type of Disc
Boron Steel/High Carbon Steel and Plain /Notched Disc(optional)
Disc Diameter
560-660 mm
Distance Between Discs
228 mm
Bearing Hub
6 to 8
Width of Cut
1912-2778 mm
Price
Data Last Updated On: 27 Jul 2026
About Universal Compact Model Disc Harrow
Universal Compact Model Disc Harrow Models
| Specification | BECMDHSA-16 | BECMDHSA-18 | BECMDHSA-20 | BECMDHSA-22 | BECMDHSA-24 |
|---|---|---|---|---|---|
| Weight | 681 kg | 758 kg | 835 kg | 912 kg | 998 kg |
| gang bolt | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) | Solid Square 32 (Rod) |
| No. of Disc | 16 | 18 | 20 | 22 | 24 |
| Type of Disc | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) | Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional) |
| Disc Diameter | 560-660 mm | 560-660 mm | 560-660 mm | 560-660 mm | 560-660 mm |
| Distance Between Discs | 228 mm | 228 mm | 228 mm | 228 mm | 228 mm |
| Bearing Hub | 6 | 8 | 8 | 8 | 8 |
| Width of Cut | 1912 mm | 2125 mm | 2345 mm | 2562 mm | 2778 mm |
| Tractor HP | 50-60 HP | 65-75 HP | 80-90 HP | 100-110 HP | 115-135 HP |
Compact Model Disc Harrow - BECMDHSA-16
Weight
681 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
16
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
560-660 mm
Distance Between Discs
228 mm
Bearing Hub
6
Width of Cut
1912 mm
Tractor HP
50-60 HP
Compact Model Disc Harrow - BECMDHSA-18
Weight
758 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
18
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
560-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2125 mm
Tractor HP
65-75 HP
Compact Model Disc Harrow - BECMDHSA-20
Weight
835 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
20
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
560-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2345 mm
Tractor HP
80-90 HP
Compact Model Disc Harrow - BECMDHSA-22
Weight
912 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
22
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
560-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2562 mm
Tractor HP
100-110 HP
Compact Model Disc Harrow - BECMDHSA-24
Weight
998 kg
gang bolt
Solid Square 32 (Rod)
No. of Disc
24
Type of Disc
Boron Steel/High Carbon Steel and Plain Rear/Front Notched Disc (Optional)
Disc Diameter
560-660 mm
Distance Between Discs
228 mm
Bearing Hub
8
Width of Cut
2778 mm
Tractor HP
115-135 HP
